Special Micrometer

Measure the groove diameter of shafts and keyways Graduation 0.01mm Non-rotating spindle Ratchet stop Supplied with setting standards (except 0-25mm)

Digital Sheet Metal Micrometer

REQUEST CALLBACK

Digital Sheet Metal Micrometer
  • Digital Sheet Metal Micrometer
  • Digital Sheet Metal Micrometer
  • Digital Sheet Metal Micrometer
  • +1 Digital Sheet Metal Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 19,658 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
TypeDigital
Model Name/Number3539-253A
Molding TypeYes
Range0-25 mm
Accuracy+/- 7 um
Size0-25 mm
Usage/Applicationfor Sheet Thickness checking
MaterialStainless Steel
ColorGrey
Featuresfor Sheet Thickness checking
Measuring Range0-25 mm
Battery TypeLR 44
Button FunctionYes
Carbide Measuring FaceYes
Data OutputYes
Power TypeLR44
Ratchet StopYes
Resolution0.001 mm
Dust Water Protection LevelIP65
Digital ModelsYes
DisplayYes
I Deal InNew Only
BrandINSIZE
ConditionNew
Code3539-253A
BatterySR44 or LR44

Other Details:

  • Deep frame suitable for sheet metal, paper and plastic
  • Resolution 0.001mm/0.00005"
  • IP54 dust/waterproof
  • Button function: on/off, set, mm/inch, ABS/INC, data output
  • Data output
  • SR44 or LR44 battery, automatic power off
  • Ratchet stop
  • Carbide measuring faces
  • Optional accessory: data output system

Specifications:
CodeRangeTypeAccuracyb
3539-253A0-25mm/0-1”A±5 mu m155
3539-253FA0-25mm/0-1”B±5 mu m155
3539-254FA0-25mm/0-1”B±6 mu m310
3539-253SA0-25mm/0-1”C±5 mu m155


Additional Information:

  • Item Code: 3539-253A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: Ex stock or with in 7days
  • Packaging Details: Moulding Box
Yes! I am interested

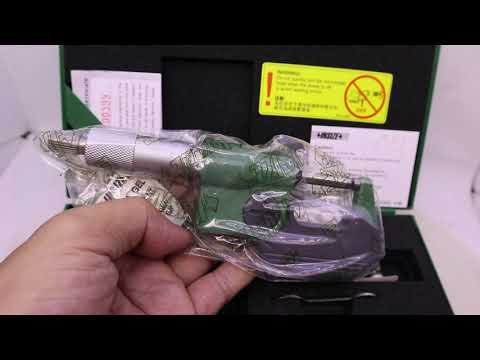

Insize Digital Cylindrical Anvil Tube Micrometer

REQUEST CALLBACK

Insize Digital Cylindrical Anvil Tube Micrometer
  • Insize Digital Cylindrical Anvil Tube Micrometer
  • Insize Digital Cylindrical Anvil Tube Micrometer
  • Insize Digital Cylindrical Anvil Tube Micrometer
  • +7 Insize Digital Cylindrical Anvil Tube Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 13,691 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
TypeDigital
Model Name/Number3560-25A
Accuracy+/- 4 um
Usage/ApplicationFor checking Tube / Pipe Diameter
FeaturesDigital Spherical Anvil Tube Micrometer
Measuring Range0-25 mm
Spindle Diameter6 mm
Battery TypeLR44
Button FunctionYes
Carbide Measuring FaceYes
Data OutputYes
Power TypeLR44
Ratchet StopYes
Resolution0.001 mm
Suitable For CylinderYes
Dust Water Protection LevelIP 65
I Deal InNew Only
BrandINSIZE
Product Code3560-25A
colorGrey
MaterialSS
Range0-25 mm

Other Details:

  • Measure wall thickness of tubes
  • Resolution 0.001mm/0.00005"
  • IP54 dust/waterproof
  • Button function: on/off, set, mm/inch, ABS/INC, data output
  • Data output
  • SR44 or LR44 battery, automatic power off
  • Ratchet stop
  • Carbide spindle tip
  • Supplied with setting standards (except 0-25mm/0-1")
  • Optional accessory: data output system

Specifications:
CodeRangeTypeAccuracy
3561-25A0-25 mm / 0-1”A±6 mu m
3561-25BA0-25 mm / 0-1”B±6 mu m
3561-25CA0-25 mm / 0-1”C±6 mu m
3561-25DA0-25 mm / 0-1”D±6 mu m


Additional Information:

  • Item Code: 3560-25A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock
  • Packaging Details: Moulding Box
Yes! I am interested

Insize Digital V-Anvil Micrometer

REQUEST CALLBACK

Insize Digital V-Anvil Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 22,911 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
Code3590-153A
Range0-150
Accuracy99%
Battery TypeLR44
BrandINSIZE

Other Details:

  • Measure the outside diameter of cutting tools (such as taps, reamers, end mills) with 3 flutes
  • Resolution 0.001mm/0.00005"
  • IP54 dust/waterproof
  • Button function: on/off, set, mm/inch, ABS/INC, data output
  • Data output
  • SR44 or LR44 battery, automatic power off
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standards
  • Optional accessory: data output system

Specifications:
CodeRangeFlutesAccuracy
3590-153A1-15mm/0.04-0.6"3±4 µm
3590-203A5-20mm10.2-0.8"3±4 µm
3590-353A20-35mm10.8-1.4"3±5 µm
3590-503A35-50mm/1.4-2.0"3±5 µm


Additional Information:

  • Item Code: 3590-153A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock
Yes! I am interested

Insize Digital Inside Micrometer

REQUEST CALLBACK

Insize Digital Inside Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 12,800 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE
Model3520-30
ApplicationIndustrial
Button Function(Millietre/Inch)
BatteryLR44

Keeping in mind diverse requirements of the clients, we wholesale and supply a wide range of Insize Digital Inside Micrometer. This micrometer is manufactured using best material & leading techniques in compliance with the set norms of industry. Offered micrometer is acclaimed in the industry due to its superior measuring of bores without any effort. Our micrometer is tested by our quality controllers to guarantee the flawlessness.

Features:

Compact design

Easy to operate

High functionality


Other Details:

Resolution 0.001mm/0.00005"

Button function: on/off, set, mm/inch, ABS/INC, data output

Data output

SR44 or LR44 battery, automatic power off

Ratchet stop

Carbide measuring faces

Optional accessory: data output system, setting ring (code 6312)


Specifications:CodeRangeTypeSetting RingAccuracy3520-305-30 mm/0.2-1.2”A5 mm±5 µm3520-5025-50 mm/1-2”B25 mm±6 µm3520-7550-75 mm/2-3”B
±7 µm3520-10075-100 mm/3-4”C
±8 µm



Additional Information:

  • Item Code: 3520-30
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex stock
Yes! I am interested

Digital Spherical Anvil Tube Micrometer

REQUEST CALLBACK

Digital Spherical Anvil Tube Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 15,668 / NumberGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Number
Type of ProductDigital Inside Micrometer
Resolution (mm) 0.001 mm
Range (mm)25-50 mm
Power SupplyBattery SR 44 or LR 44
BrandInsize

We are the leading supplier of Digital Spherical Anvil Tube Micrometer.

Application:
Measure wall thickness of tubes

Features:
  • Ball anvil, designed for measuring bearings and other curved surfaces
  • Ball anvil and .0001" graduations assure accurate measurements
  • Available with digital electronic or mechanical readout
  • IP54 dust/waterproof
  • Button function: on/off, set, mm/inch, ABS/INC, data output Data output SR44 or LR44 battery, automatic power off Ratchet stop
  • Carbide measuring faces Supplied with setting standards .

Optional accessory: data output system


Additional Information:

  • Item Code: 3560
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex. Stock Within 7 Days
Yes! I am interested

Sheet Metal Micrometer

REQUEST CALLBACK

Sheet Metal Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 6,275 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

  • Deep frame suitable for sheet metal,
  • paper and plastic
  • Graduation 0.01mm
  • Ratchet stop
  • Carbide measuring faces

Specifications:
CodeRangeTypeAccuracyb
3239-2530-25 mmA5 mu m155
3239-253F0-25 mmB5 mu m155
3239-254F0-25 mmB6 mu m310
3239-25350-25 mmC6 mu m155


Additional Information:

  • Item Code: 3239-253
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Interchangeable Anvil Micrometer

REQUEST CALLBACK

Interchangeable Anvil Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 7,342 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandInsize

Other Details:

  • Measure tube thickness, shoulder edge distance, rivet head height, etc.
  • Supplied with flat anvil and rod anvil
  • Graduation 0.01 mm
  • Ratchet stop
  • Carbide spindle tip
  • Setting standards are included (except 0-25 mm)

Specifications:
CodeRangeAccuracyLd
3262-25A0-25 mm4 µm28.5Ø3
3262-50A25-50 mm4 µm53.5Ø5


Additional Information:

  • Item Code: 3262-25A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Insize V-Anvil Micrometer

REQUEST CALLBACK

Insize V-Anvil Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 9,550 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandInsize

Other Details:

  • Measure the outside diameter of cutting tools (such as taps, reamers, end mills) with 3 or 5 flutes
  • Graduation 0.01mm
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standards

Specifications:
CodeRangeFlutesAccuracy
3290-153A1-15 mm34 mu m
3290-203A5-20 mm34 mu m
3290-353A20-35 mm35 mu m
3290-503A35-50 mm35 mu m
3290453A50-65 mm36 mu m
3290403A65-80 mm36 mu m
3290-953A80-95 mm37 mu m
3290-255A5-25 mm54 mu m
3290455A25-45 mm55 mu m
3290455A45-65 mm56 mu m
3290455A65-85 mm57 mu m


Additional Information:

  • Item Code: 3290-153A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock
Yes! I am interested

Spherical Anvil Tube Micrometer

REQUEST CALLBACK

Spherical Anvil Tube Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 2,339 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

Measure wall thickness of tubes

Graduation 0.01mm

Ratchet stop

Carbide measuring faces

Supplied with setting standards (except 0-25mm)

Specifications:

CodeRangeTypeAccuracyLb3260-25A0-25 mmA4 mu m32243260-50A25-50 mmA4 mu m57323260-75A50-75 mmA5 mu m8244.53260-100A75-100 mmA5 mu m107573260-25SA0-25 mmB4 mu m32243260-50SA25-50 mmB4 mu m57323260-75SA50-75 mmB5 mu m8244.53260-100 SA75-100 mmB5 mu m10757



Additional Information:

  • Item Code: 3260-25A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Insize Digital Point Micrometer

REQUEST CALLBACK

Insize Digital Point Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 13,460 / PieceGet Latest Price

Product Brochure
Product Details:
BrandINSIZE

Other Details:

  • Measure the web thickness of drills, small grooves and keyways
  • Resolution 0.001mm/0.00005"
  • IP54 dust/waterproof
  • Button function: on/off, set, mm/inch, ABS/INC, data output
  • Data output
  • SR44 or LR44 battery, automatic power off
  • Ratchet stop
  • Carbide tips
  • Supplied with setting standards (except 0-25mm/0-1")
  • Optional accessory: data output system

Specifications:
CodeRangeTypeAccuracyLb
3530-25A0-25mm/0-1"A±4 mu m5732
3530-50A25-50mm11-2"A±4 mu m8244.5
3530-75A50-75mm12-3"A±5 mu m10757
3530-100A75-100mm/3-4"A±5 mu m132.669.5
3530-25BA0-25mm10-1"B±4 mu m5732
3530-50BA25-50mm/1-2"B±4 mu m8244.5
3530-75BA50-75mm/2-3"B±5 mu m10757
3530-100 BA75-100mm/3-4"B±5 mu m132.669.5


Additional Information:

  • Item Code: 3530-25A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex Stock
Yes! I am interested

Insize Crimp Height Micrometer

REQUEST CALLBACK

Insize Crimp Height Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 4,448 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
ConditionNew

Other Details:

  • Measure the height of crimp contact
  • Graduation 0.01mm
  • Ratchet stop

Specifications:
CodeRangeAccuracy
3266-25BA0-25 mm4 mu m


Additional Information:

  • Item Code: 3266-25BA
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock
Yes! I am interested

Insize Limit Micrometer

REQUEST CALLBACK

Insize Limit Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 6,753 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
ConditionNew

Other Details:

Used as Go/No-Go gauge by setting upper and lower limit

Graduation 0.002mm

Carbide measuring face

Supplied with setting standard (except 0-25mm)


Specifications:CodeRangeAccuracyLab3235-25A0-25 mm4 mu M3212243235-50A25-50 mm4 mu M571532



Additional Information:

  • Item Code: 3235-25A
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock
Yes! I am interested

Non Rotating Spindle Universal Micrometer

REQUEST CALLBACK

Non Rotating Spindle Universal Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 13,810 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE
Code3280-25A
Range0-25 mm

Other Details:

  • Graduation 0.01 mm
  • Non-rotating spindle
  • Ratchet stop
  • Supplied with 7 pairs of anvil/spindle tip
  • Setting standards are included (except 0-25mm)
  • Optional accessory: anvil/spindle tip (code 3280-SP1 and 3280-SP2)

Specifications:

CodeRangeAccuracyLd
3280-25A0-25 mm4 µm4226
3280-50A25-50 mm4 µm6738


Additional Information:

  • Item Code: 3280-25A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Insize Digital Crimp Height Micrometer

REQUEST CALLBACK

Insize Digital Crimp Height Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 15,864 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

  • Measure the height of crimp contact
  • Resolution 0.001mm/0.00005"
  • IP54 dust/waterproof
  • Button function: on/off, set, mm/inch, ABS/INC, data output
  • Data output
  • SR44 or LR44 battery, automatic power off
  • Ratchet stop
  • Optional accessory: data output system

Specifications:
CodeRangeAccuracy
3266-25BA0-25 mm/0-1”4 mu m


Additional Information:

  • Item Code: 3566-25BA
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock
Yes! I am interested

Insize Digital Blade Micrometer

REQUEST CALLBACK

Insize Digital Blade Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 17,720 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

Measure the groove diameter of shafts and keyways

Resolution 0.001mm/0.00005"

Non-rotating spindle

Button function: on/off, set, mm/inch, ABS/INC, data output

Data output

SR44 or LR44 battery, automatic power off

Ratchet stop

Supplied with setting standards (except 0-25mm/0-1")

Optional accessory: data output system

Specifications:CodeRangeTypeAccuracyLb3532-25A0-25mm/0-1"A±4 mu m57323532-50A25-50mm/1-2"A±4 mu m8244.53532-75A50-75mm/2-3"A±5 mu m107573532-100A75-100mm/3-4"A±5 mu m132.669.53532-25BA0-25mm/0-1"B±4 mu m57323532-50BA25-50mmt1-2"B±4 mu m8244.5



Additional Information:

  • Item Code: 3532-25A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock
Yes! I am interested

Digital Arc Radius Caliper

REQUEST CALLBACK

Digital Arc Radius Caliper
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 13,220 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

  • Measure the radius of arc less than half round
  • Resolution: 0.01mm/0.0005"
  • Buttons: on/off, zero, mm/inch
  • Automatic power off, move the digital unit to turn on power
  • Battery CR2032
  • Data output
  • Made of stainless steel
  • Optional accessory: data output system

Specification:
CodeRangeAccuracyLcd
1189-150B5-150mm/0.2-6"±0.05mm2631665
1189-200B5-200mm/0.2-8"±0.07mm3131685

We provide NABL tracable calibration certificate. calibration charges will be extra.




Additional Information:

  • Item Code: 1189-150B
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Digital Spline Micrometer

REQUEST CALLBACK

Digital Spline Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 15,306 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

  • Measure splined shafts, slots and keyways
  • Resolution 0.001mm/0.00005"
  • IP54 dust/waterproof
  • Button function: on/off, set, mm/inch, ABS/INC, data output
  • Data output
  • SR44 or LR44 battery, automatic power off
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standards (except 0-25mm/0-1")
  • Optional accessory: data output system

Specifications:
CodeRangeTypeAccuracyLb
3533-25A0-25mm/0-1"A±4 mu m5732
3533-50A25-50mm/1-2"A±4 mu m8244.5
3533-75A50-75mm/2-3"A±5 mu m10757
3533-100A75-100mm/3-4"A±5 mu m132.669.5
3533-25BA0-25mm/0-1"B±4 mu m5732
3533-50BA25-50mm/1-2"B±4 mu m8244.5
3533-75BA50-75mm/2-3"B±5 mu m10757
3533-100BA75-100mml3-4"B±5 mu m132.669.5


Additional Information:

  • Item Code: 3533-25BA
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock
Yes! I am interested

Cylindrical Anvil Tube Micrometer

REQUEST CALLBACK

Cylindrical Anvil Tube Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 2,891 / No(s)Get Latest Price

Product Brochure
Measure wall thickness of tubes Graduation 0.01mm Ratchet stop Carbide spindle tip Supplied with setting standards (except 0-25mm)


Additional Information:

  • Item Code: 3261-25DA
  • Minimum Order Quantity: 1 No(s)
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex.Stock Within 7Days
Yes! I am interested

Digital Crimp Height Micrometer

REQUEST CALLBACK

Digital Crimp Height Micrometer
  • Digital Crimp Height Micrometer
  • Digital Crimp Height Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 15,864 / NumberGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Number
BrandINSIZE

Measure the height of crimp contact Resolution 0.001mm/0.00005" IP54 dust/waterproof Button function: on/off, set, mm/inch, ABS/INC, data output Data output SR44 or LR44 battery, automatic power off Ratchet stop Optional accessory: data output system ±4μm Accuracy 0-25mm/0-1" Range


Additional Information:

  • Item Code: 356625ba
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex Stock Within 7Days
Yes! I am interested

Insize Indicating Micrometer

REQUEST CALLBACK

Insize Indicating Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 19,722 / PieceGet Latest Price

Other Details:

  • Micrometer head graduation 0.002mm
  • Dial indicator: range +-0.04mm, graduation 0.001mm, accuracy 0.001mm
  • Carbide measuring faces
  • Supplied with setting standards (except 0-25mm)

Specifications:
CodeMicrometer head
range
Micrometer head
accuracy
TypeLbRe
3332-250-25 mm4 mu mA28.519with Support
3332-5025-50 mm4 mu mA53.530with Support
3332-7550-75 mm5 mu mA78.545without Support
3332-10075-100 mm5 mu mA103.557without Support
3332-25 B0-25 mm4 mu mB28.519without Support


Additional Information:

  • Item Code: 3332-25
  • Minimum Order Quantity: 1 Piece
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex stock
Yes! I am interested

Point Micrometer

REQUEST CALLBACK

Point Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 4,220 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
MaterialMild Steel
ConditionNew
Button Function(Millietre/Inch)

Other Details:

Measure the web thickness of drills,

small grooves and keyways

Graduation 0.01mm

Ratchet stop

Carbide tips

Supplied with setting standards (except 0-25mm)


Specifications:CodeRangeTypeAccuracyLb3230-25A0-25 mmA4 mu m57323230-50A25-50 mmA4 mu m8244.53230-75A50-75 mmA5 mu m107573230-100A75-100 mmA5 mu m132.669.53230-25BA0-25 mmB4 mu m57323230-50BA25-50 mmB4 mu m8244.53230-75BA50-75 mmB5 mu m107573230-100BA75-100 mmB5 mu m132.669.5



Additional Information:

  • Item Code: 3230-25A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Spline Micrometer

REQUEST CALLBACK

Spline Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 4,366 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
ConditionNew

Other Details:

  • Measure splined shafts, slots and keyways
  • Graduation 0.01mm
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standards (except 0-25mm)

Specifications:
CodeRangeTypeAccuracyLb
3233-25A0-25 mmA4 mu m5732
3233-25BA0-25 mmB4 mu m5732
3233-50BA25-50 mmB4 mu m8244.5
3233-75BA50-75 mmB5 mu m10757
3233-100BA75-100 mmB5 mu m132.669.5
3233-125BA100-125 mmB6 mu m15882
3233-150BA125-150 mmB6 mu m183.494.5
3233-175BA150-175 mmB7 mu m208.8107


Additional Information:

  • Item Code: 3233-25BA
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock
Yes! I am interested

Groove Micrometer

REQUEST CALLBACK

Groove Micrometer
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 17,487 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
ConditionNew

Other Details:

  • Graduation 0.01 mm
  • Measure width of grooves inside bores
  • Non-rotating spindle
  • Two graduations for inside and outside measurement

Specifications:
CodeRange (outside)Range (inside)Accuracy
3287-25A0-25 mm1.6-26.5 mm10 mu m
3287-50A25-50 mm26.5-51.5 mm10 mu m
3287-75A50-75 mm51.5-76.5 mm10 mu m
3287-100A75-100 mm76.5-101.5 mm10 mu m


Additional Information:

  • Item Code: 3287-25A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested


X


Explore More Products

Contact via E-mail
Contact via SMS
Jalpa Mehta (C.E.O)
Bearing & Tool Centre
1st Floor,, Vyapar Bhavan, Relief Road, Odhav
Ahmedabad - 380001, Gujarat, India
Call Us:
Call Response Rate: 91%
Share Us :



Home  |   About Us   |  Our Products  |  Site Map  |   Contact Us

© Bearing & Tool Centre. All Rights Reserved (Terms of Use)
Developed and Managed by IndiaMART InterMESH Limited

Bearing & Tool Centre
