Hardness Tester

According to ISO868, ISO7619, ASTM D 2240 Average and peak Dwell time is adjustable Low and high limits with judgement 500 memories Wireless connection to printer Handhold use or work with test stand ode Automatic power off (max.) mode (c ISH-DS-Stand).

Automatic Digital Rockwell Hardness Tester

REQUEST CALLBACK

Automatic Digital Rockwell Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 1.89 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Hardness scale: HRA, HRB, HRC, HRD HRF, HRG (with standard indenters); HRE, HRH, HRK (with optional indenter). Preliminary test force 98N. Test force: 588N, 980N, 1471N. Stage elevation manual. Load control automatic (load/dwell/unload). Load dwell time 1~99 second. Resolution 0.1HR. Tolerance measurement with alarm. Set measurement times (2~9) to have average value and the difference of max. and min. value. Convert to HV or HB automatically. Memory of 1000 measurement values for browsing and output. Measurement value can be sent to wireless printer automatically. Calibration function compensates the measurement value for high accuracy. The hardness value of soft materials like plastic is not stable. The lock function can obtain the value automatically. Display unit is automatic power off.

We provide NABL tracable calibration certificate. calibration charges will be extra.



Additional Information:

  • Production Capacity: As per Clint requirement
  • Packaging Details: As per Clint requirement
Yes! I am interested

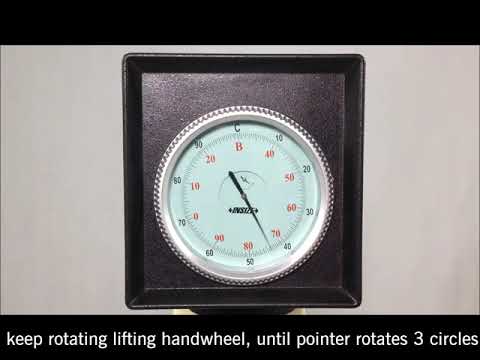

Automatic Rockwell Hardness Tester

REQUEST CALLBACK

Automatic Rockwell Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 1.87 Lakh / PieceGet Latest Price

Product Brochure
Supported by our highly experienced professionals, we have emerged as an affluent wholesaler and supplier of Automatic Rockwell Hardness Tester. This hardness tester is used in mechanical engineering to determine the hardness of a material to deformation. Furthermore, the hardness tester offered by us is tested on several parameters so as to deliver a defect free range. Offered hardness tester is provided to our customers within a promised time frame at affordable price.

Features:

  • Quick analysis
  • Automatic operation
  • Correct measurement

Specifications:
Hardness scaleHRA. HRB. HRC. HRD. HRF. HRG
Preliminary test force96N
Test force588N. 980N. 1471N
Displayanalogue
Stage elevationmanual
Load controlautomatic (load/dwell/unload)
Load dwell time1-99 second
Min. reading0.5HR
Max. workpiece height170mm
Max. workpiece depth165mm (from the center of indenter)
Dimension520 160 700mm
Weight60kg


Additional Information:

  • Item Code: ISH-MR150
  • Minimum Order Quantity: 1 Piece
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex stock
Yes! I am interested

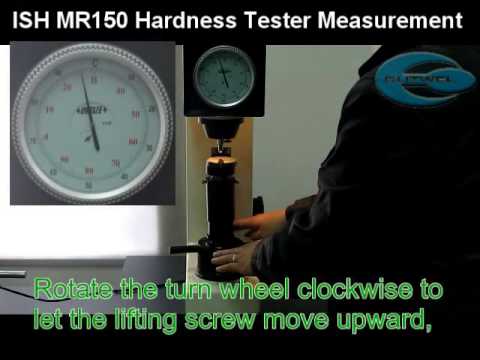

Manual Digital Rockwell Hardness Tester

REQUEST CALLBACK

Manual Digital Rockwell Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 1.7 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE
Is It PortablePortable

With firm commitment to quality, our organization is offering a wide range of Manual Digital Rockwell Hardness Tester. This hardness tester is manufactured at vendor’s end using best quality material and latest technology. The hardness tester offered by us is provided in number of specifications as per the needs of customers. Our offered hardness tester is highly demanded in the industry due to its high tensile strength.

Features:

  • Precisely engineered
  • Compact size
  • Unmatched quality

Other Details:

  • Tolerance measurement with alarm
  • Set measurement times (2~9) to have average value and the
  • difference of max. and min. value
  • Convert to HV or HB automatically
  • Memory of 1000 measurement values for browsing and output
  • Measurement value can be sent to wireless printer automatically
  • Calibration function compensates the measurement value for
  • high accuracy
  • The hardness value of soft materials like plastic is not stable
  • The lock function can obtain the value automatically
  • Automatic power off

Specifications:
Hardness scaleHRA, HRB. HRC. HRO,
HRF. HRG (with standard indenters)
HRE, HRH, HRK (with optional Indenter)
Preliminary test force98N
Test force Stage elevation588N, 980N. 1471N
manual
Load controlmanual
Resolution Output0.1HR
wireless and USB
Memory1000
Max. workpiece height Max. workpiece depth170mm
165mm (from the center of indenter)
Power supply Dimension
Weight		built-in rechargeable battery
520 X 160 X 700 mm
60kg


Additional Information:

  • Item Code: ISH-RD200
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex stock
Yes! I am interested

Manual Rockwell Hardness Tester

REQUEST CALLBACK

Manual Rockwell Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 1.45 Lakh / PieceGet Latest Price

Product Brochure
We are actively engaged in offering a premium quality Manual Rockwell Hardness Tester. Our offered hardness testers are designed from the finest material& modern techniques in fulfillment with the standards of industry. As well, our offered hardness testers are checked before dispatching to customers so as to assure its flawlessness. We offer these hardness testers in various sizes & other related specifications.

Features:

  • Innovative design
  • Low maintenance
  • Highly durability

Specifications:
Hardness scaleHRA, HRB, HRC, HRD, HRF, HRG
Preliminary test force98N
Test force588N, 980N, 1471N
Displayanalogue
Stage elevationmanual
Load controlmanual
Min. reading0.5HR
Max. workpiece height170mm
Max. workpiece depth165mm (from the center of indenter)
Dimension520×160×700mm
Weight60kg


Additional Information:

  • Item Code: ISH-R150
  • Minimum Order Quantity: 1 Piece
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Webster Hardness Tester

REQUEST CALLBACK

Webster Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 1.27 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

  • To measure the hardness of soft metal such as aluminum alloy, copper, brass, soft steel, etc.
  • According to ASTM B647-84 (2000)

Specifications:
CodeISHW-L20ISHW-L20AISHW4.20BISHW-1370ISHW-B75ISHW-892
ApplicationFor aluminum alloy
General use		For aluminum alloy
Thick workpiece		For aluminum alloy
Small tube		For hard aluminum
Alloy and hard brass		For soft brass
And copper		For soft steel and
Cold-rolled steel
Thickness requirement of flat workpiece0.6-6 mm0.6-13 mm0.6-8 mm0.6-6 mm0.6-8 mm0.6-6 mm
Internal diameter requirement of tube workpiece>Ø10 mm>Ø10 mm>Ø6 mm>Ø10 mm>Ø6 mm>Ø10 mm
Wall thickness requirement of tube workpiece0.6-6 mm6-13 mm (internal diameter 010-23. 3 mm)
0.6-6 mm (internal diameter >Ø23.3 mm)		0.6-8 mm0.6-6 mm0.6-8 mm0.6-6 mm
Hardness Range0.20 HW
Min. Reading1 HW
Accuracy±0.5 HW (at 5~17 HW)
Dimension205 X 30 X 85 mm
Weight500 g


Additional Information:

  • Item Code: ISHW-L20
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Barcol Hardness Tester

REQUEST CALLBACK

Barcol Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 1 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

To measure the hardness of thick workpieces made of pure aluminum aluminum alloy, fiber reinforced plastic, hard plastic, etc.

According to ASTM B648-00, ASTM D2853-07


Specifications:Hardness range0~100 HBa (equal to 25~150 HBW)Min. reading1 HbaAccuracy±2 Hba (at 42~52 Hba)
±1 Hba (at 84~88 Hba)Min. workpiece thickness0.8 mmDimension142 X 65 X 90 mmWeight500 g



Additional Information:

  • Item Code: ISHB-B300
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Magnetic Rockwell Hardness Tester

REQUEST CALLBACK

Magnetic Rockwell Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 2.54 Lakh / PieceGet Latest Price

Product Brochure
Other Details:

  • Apply to large and heavy steel or iron workpieces
  • According to ISO 6508, ASTM E18

Specifications:
Load ControlManual
Min. Reading1 HR
Flat Workpiece RequirementLength > 180 mm, Width>60 mm, Thickness>5 mm
Cylinder or Tube workpiece RequirementLength > 180 mm, Diameter > Ø50 mm, Wall thickness > 8 mm
Dimension220×70×220 mm
Weight4.7 kg


Additional Information:

  • Item Code: ISHR-M111
  • Minimum Order Quantity: 1 Piece
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex stock
Yes! I am interested

Webster Hardness Testers

REQUEST CALLBACK

Webster Hardness Testers
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 1.13 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Application for aluminum alloy general use. Hardness range 0 ~ 20HW. Min. reading 1HW. Accuracy ±0.5HW (at 5 ~ 17HW). To measure the hardness of soft metal such as aluminum alloy, copper, brass, soft steel, etc. According to ASTM B647-84 (2000).


Additional Information:

  • Item Code: ISHWL20
  • Pay Mode Terms: T/T (Bank Transfer),D/P
  • Production Capacity: As per client Required
  • Delivery Time: Within 15 days
  • Packaging Details: As Per Client Required.
Yes! I am interested

Automatic Rockwell Hardness Tester

REQUEST CALLBACK

Automatic Rockwell Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 1.89 Lakh / PieceGet Latest Price

Product Brochure

Hardness scale: HRA, HRB, HRC, HRD HRF, HRG (with standard indenters); HRE, HRH, HRK (with optional indenter). Preliminary test force 98N. Test force: 588N, 980N, 1471N. Stage elevation manual. Load control automatic (load/dwell/unload). Load dwell time 1~99 second. Resolution 0.1HR. Tolerance measurement with alarm. Set measurement times (2~9) to have average value and the difference of max. and min. value. Convert to HV or HB automatically. Memory of 1000 measurement values for browsing and output. Measurement value can be sent to wireless printer automatically. Calibration function compensates the measurement value for high accuracy. The hardness value of soft materials like plastic is not stable. The lock function can obtain the value automatically. Display unit is automatic power off.





Additional Information:

  • Item Code: ISHMR150
  • Minimum Order Quantity: 1 Piece
  • Pay Mode Terms: T/T (Bank Transfer)
  • Production Capacity: As per client Required
  • Delivery Time: Within 15 days.
  • Packaging Details: As per client Required
Yes! I am interested

Ultrasonic Hardness Tester

REQUEST CALLBACK

Ultrasonic Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 2.73 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Hardness scale: HV, HB, HRB, HRC, HS. Resolution: 1HV, 1HB, 1HRB, 0.1HRC, 1HS. Accuracy: HB ±10HB, HV ±15HV, HRC ±2HRC. Minimum measuring area: Ø1mm. Data output: USB. Power supply: built-in rechargeable battery. Small test indentation. Test force and time are not affected by the operator. Quick test, only 2 seconds. Memory of 1000 test results. Automatic power off. Anti-dust and waterproof.


Additional Information:

  • Item Code: ISHU-460
  • Pay Mode Terms: T/T (Bank Transfer)
  • Production Capacity: As per Clint requirement
  • Packaging Details: As per Clint requirement
Yes! I am interested

Ultrasonic Hardness Tester

REQUEST CALLBACK

Ultrasonic Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 2.02 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
BrandINSIZE

Small test indentation. Test force and time are not affected by the operator. Quick test, only 2 seconds. Average and statistics test modes. Memory of 1024 test results for browsing and output. Automatic power off. Anti-dust and waterproof.


Additional Information:

  • Item Code: ISHU-330
  • Pay Mode Terms: T/T (Bank Transfer)
  • Production Capacity: As per Clint requirement
  • Packaging Details: As per Clint requirement
Yes! I am interested

Digital Vickers Hardness Testers

REQUEST CALLBACK

Digital Vickers Hardness Testers
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 10.69 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Measuring range 8HV0.3 ~ 2500HV10. Test force: 0.3, 0.5, 1, 3, 5, 10kgf. Accuracy ±3%. Eyepiece: magnification 10X, resolution 0.0625μm. Objective: 10X, 20X. Total magnification: 100X (for observation), 200X (for measuring). Stage elevation manual. Load control automatic (load/dwell/unload). Dwell time 5 ~ 60 second. Based on Vickers(HV), converted to Rockwell(HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK), Brinell(HB), Superficial Rockwell(HR15N, HR15T, HR30N, HR30T, HR45N, HR45T), Shore(HS) and Strength(MPa). Memory of 27 measurement values for print, browsing and output. LCD display with backlight. Can measure Knoop hardness, Knoop indenter is needed.



Additional Information:

  • Item Code: ISH-DV50
  • Pay Mode Terms: T/T (Bank Transfer)
  • Production Capacity: As per client Required
  • Delivery Time: Within 15 days
  • Packaging Details: As per Client Required.
Yes! I am interested

Brinell Rockwell Vickers Hardness Tester

REQUEST CALLBACK

Brinell Rockwell Vickers Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 3.35 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Owing to the presence of our expert engineers, we have been able to wholesale and supply Brinell/Rockwell/Vickers Hardness Tester. Offered hardness testers are used for small parts, thin sections, or case depth work. These hardness testers are manufactured utilizing top notch material & contemporary techniques in adherence with the industrial standards. The hardness testers offered by us can be availed at nominal rates.

Features:

  • Highly Reliable
  • Compact size
  • Easy to use

Specifications:
Rockwell test load98N preload, 588 , 980 ,1471 N total load
Min. Rockwell reading0.5HR
Brinell test load306, 613, 1839N
Vickers test load294N
Stage elevationmanual
Load controlmanual
Magnification of microscope37.5X/75X (selectable)
Max. workpiece height180mm
Max. workpiece depth200mm (from the center of indenter)
Dimension546×300×767mm
Weight90kg


Additional Information:

  • Item Code: ISH-BRV
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Portable Hardness Tester

REQUEST CALLBACK

Portable Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 1.08 Lakh / PieceGet Latest Price

Product Brochure
Other Details:

  • Impact device D
  • Based on Leeb(HLD), converted to Vickers(HV), Brinell(HB),
  • Rockwell(HRC and HRB), Shore(HS) and tensile strength(MPa)
  • Automatic direction correction
  • Connected with printer via bluetooth
  • Connected with computer via USB port
  • Up to 500 test results can be saved
  • According to ASTM A 956

Specifications:
Min. reading1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS
Accuracy±6HLD (when HLD=800)
OutputUSB and bluetooth
Applicable workpieceMinimum weight5kg (direct measurement)
2kg (on solid support)
0.1kg (coupled on plate)

Minimum thickness: 5 mm

Minimum radius of curved surface: 11 mm

Maximum roughness(Ra): 1.6 µm
Power supplyBuilt-in rechargeable battery
Dimension147×35×22mm
Weight65g


Additional Information:

  • Item Code: ISH-SPHD
  • Minimum Order Quantity: 1 Piece
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Portable Hardness Tester

REQUEST CALLBACK

Portable Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 87,221 / PieceGet Latest Price

Product Brochure
Other Details:

  • Supplied with impact device D
  • Based on Leeb(HLD), converted to Vickers(HV), Brinell(HB),
  • Rockwell(HRC and HRB), Shore(HS) and tensile strength(MPa)
  • Connected with printer via bluetooth
  • LCD display with backlight
  • Automatic power off
  • According to ASTM A 956

Specifications:
Min. reading1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
Accuracy±6HLD (when HLD=800)
DisplayLeeb(HLD), converted hardness, materia
impact direction, test times, average value, date
OutputBluetooth
Applicable workpieceMinimum weight5kg (direct measurement)
2kg (on solid support)
0.1kg (coupled on plate)

Minimum thickness: 5 mm

Minimum radius of curved surface: 11 mm

Maximum roughness(Ra): 1.6 µm
Power supply3 AAA batteries
Dimension150×80×24 mm
Weight200g


Additional Information:

  • Item Code: ISH-PHA
  • Minimum Order Quantity: 1 Piece
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex stock
Yes! I am interested

Portable Hardness Tester

REQUEST CALLBACK

Portable Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 48,289 / PieceGet Latest Price

Product Brochure
Other Details:

  • Supplied with impact device D
  • Set measurement times (1~9) to have average value
  • Based on Leeb(HLD), converted to Vickers(HV), Brinell(HB), Rockwell (HRC and HRB), Shore(HS) and tensile strength(MPa)
  • Memory of 99 measurement values for browsing
  • Connected with printer via bluetooth
  • Automatic power off
  • According to ASTM A 956

Specifications:
Min. reading1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
Accuracy±6HLD (when HLD=800)
DisplayLeeb(HLD), converted hardness, materia
impact direction, test times, average value, date
OutputBluetooth
Applicable workpieceMinimum weight5kg (direct measurement)
2kg (on solid support)
0.1kg (coupled on plate)

Minimum thickness: 5 mm

Minimum radius of curved surface: 11 mm

Maximum roughness(Ra): 1.6 µm
Power supply3 AAA batteries
Dimension150×80×24 mm
Weight200g


Additional Information:

  • Item Code: ISH-PHB
  • Minimum Order Quantity: 1 Piece
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex stock
Yes! I am interested

Pin Brinell Hardness Tester

REQUEST CALLBACK

Pin Brinell Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 2.17 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandInsize

Other Details:

Measure Brinell hardness of large and heavy workpiece

1580kg test force and Ø7.26mm ball indenter, equal to 3000kg test force and Ø10mm ball indenter

Static and impact test mode

According to ISO and ASTM standard


Specifications:

  • Measuring range: 100~350HBW (with Ø7.26mm indenter, included), 350~650HBW (with Ø4mm indenter, optional)
  • Test force: 1580 kg
  • Accuracy: Static test: ±3%
    Impact test: ±5%
  • Measuring microscope: 20X, graduation 0.01 mm
  • Max. workpiece height in static test: 150 mm
  • Max. workpiece depth in static test: 80 mm (from the center of indenter)
  • Dimension: 195×60×350 mm
  • Weight: 4.2 kg


Additional Information:

  • Item Code: ISHB-P101
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex stock
Yes! I am interested

Hydraulic Brinell Hardness Tester

REQUEST CALLBACK

Hydraulic Brinell Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 5.48 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandInsize

Specifications:
Measuring Range16~650 HBW
Test Force3000 kg
IndenterØ10 mm carbide ball
Measuring Microscope20X, graduation 0.01 mm
Max Workpiece Height350 mm
Max. Workpiece Depth90 mm (from the center of indenter)
Dimension270 X 225 X 570 mm
Weight13.8 kg


Additional Information:

  • Item Code: ISHB-H131
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Digital Shore Durometer

REQUEST CALLBACK

Digital Shore Durometer
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 28,030 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

  • According to ISO868, ISO7619, ASTM D 2240
  • Average and peak (max.) mode
  • Dwell time is adjustable
  • Low and high limits with judgement
  • 500 memories
  • Wireless connection to printer
  • Handhold use or work with test stand
  • Automatic power off

Specifications:
CodeISH-DSAISH-DSD
UnitShore AShore D
Test materialSoft plastic, soft rubber, etc.hard plastic, hard rubber, etc.
Measuring range0~100 HA0~100 HD
Resolution0.1 HA0.1 HD
Accuracy±1 HA±1 HD
Indenter protrusion2.5 mm
OutputWireless and USB
Power supplyBuiltoin Rechargeable Battery
Dimension153 X 50 X 29 mm
Weight170 g


Additional Information:

  • Item Code: ISH-DSA
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Digital Shore Durometer

REQUEST CALLBACK

Digital Shore Durometer
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 38,114 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

  • According to ISO868, ISO7619, ASTM D 2240
  • Average and peak (max.) mode
  • Dwell time is adjustable
  • Low and high limits with judgement
  • 500 memories
  • Wireless connection to printer
  • Handhold use or work with test stand
  • Automatic power off

Specifications:
CodeISH-DSAISH-DSD
UnitShore AShore D
Test materialSoft plastic, soft rubber, etc.hard plastic, hard rubber, etc.
Measuring range0~100 HA0~100 HD
Resolution0.1 HA0.1 HD
Accuracy±1 HA±1 HD
Indenter protrusion2.5 mm
OutputWireless and USB
Power supplyBuiltoin Rechargeable Battery
Dimension153 X 50 X 29 mm
Weight170 g


Additional Information:

  • Item Code: ISH-DSD
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Testing Stand for Digital Shore Durometer

REQUEST CALLBACK

Testing Stand for Digital Shore Durometer
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 40,619 / PieceGet Latest Price

Product Brochure
Other Details:

  • Can perform repeatable hardness measurement due to fewer possibilities of human error or measurement variations
  • 1kg weight is for ISH-DSA, weight is for 5kg ISH-DSD

Specifications:
Stage diameterØ88 mm
Maximum workpiece height75 mm
Dimension125 X 163 X 350 mm
Weight4 kg


Additional Information:

  • Item Code: ISH-DS-STAND
  • Minimum Order Quantity: 1 Piece
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Portable Hardness Tester

REQUEST CALLBACK

Portable Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 44,003 / PieceGet Latest Price

Product Brochure

Specifications:

Min. Reading: 1 HLD,1HV, 1HB, 0.1 HRC, 0.1 HRB, 1HS, 1Mpa

Accuracy: 8HLD

Display: Leeb, Conversion Harness, Materail, Impact direction, Test times, average value, time

Power Supply: 3*A AA Batteries

Dimension: 155x72x27 mm

Weight: 280 g



Additional Information:

  • Item Code: ISHL-P100
  • Minimum Order Quantity: 1 Piece
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: Ex stock
Yes! I am interested

Automatic Brinell Hardness Tester

REQUEST CALLBACK

Automatic Brinell Hardness Tester
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 2.27 Lakh / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandInsize

Reading mode from table. Test force: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf. Measuring microscope: magnification 20X, graduation 0.01mm. Automatic testing after preliminary test force is loaded by hand. Measure indentation by measuring microscope then find the hardness value from table. Electronic close-loop load control system.



Additional Information:

  • Pay Mode Terms: T/T (Bank Transfer)
  • Production Capacity: As per client Required
  • Delivery Time: Within 15 days
  • Packaging Details: As Per Client Required.
Yes! I am interested

Shore Durometer

REQUEST CALLBACK

Shore Durometer
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 86,051 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

  • According to ISO868, ISO7619, ASTM D 2240
  • With peak value indicator
  • Handhold use or work with test stand

Specifications:
CodeISH-S30AISH-S30D
UnitShore AShore D
Test materialSoft plastic, soft rubber, etc.hard plastic, hard rubber, etc.
Measuring range0~100 HA0~100 HD
Resolution0.1 HA0.1 HD
Accuracy±0.5 HA±0.5 HD
Indenter protrusion2.5 mm
Bezel diameter57 mm
Overall height121 mm
Weight184g


Additional Information:

  • Item Code: ISH-S30A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Shore Durometer

REQUEST CALLBACK

Shore Durometer
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 5,972 / PieceGet Latest Price

Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE
Display TypeDial
Measuring Range10-90HA

Other Details:

According to ISO868, ISO7619, ASTM D 2240

With peak value indicator

Optional accessory: Test stand ISH-STAC and ISH-STD


Specifications:
CodeISH-SAMISH-SDMScaleShore AShore DApplicationNature rubber, soft elastomer, etc.Hard rubber, plastic, hard elastomer, etc.Measuring Range10-90 HA20-90 HDGraduation1 HA1 HDIndenter Protrusion2.5 mmDimension115 X 60 X 25 mmWeight160g



Additional Information:

  • Item Code: ISH-SAM
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Hardness Test Block

REQUEST CALLBACK

Hardness Test Block
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 5,207 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

CodeTypeHardness
ISH-BHRC1Rockwell C25-35 HRC
ISH-BHRC240-50 HRC
ISH-BHRC355-65 HRC
ISH-BHRBRockwell B75-95 HRB
ISH-BHRARockwell A70-85 HRA
ISH-BHV5AVickers150-250 HV5
ISHBHV5B400-500 HV5
ISH-BHV5C650-750 HV5
ISH-BHV10A400-500 HV10
ISH-BHV10B650-750HV10
ISH-BHV30400-500HV30


Additional Information:

  • Item Code: VickersISH-BHV10A
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Hardness Test Block

REQUEST CALLBACK

Hardness Test Block
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 2,018 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

CodeTypeHardness
ISH-BHRC1Rockwell C25-35 HRC
ISH-BHRC240-50 HRC
ISH-BHRC355-65 HRC
ISH-BHRBRockwell B75-95 HRB
ISH-BHRARockwell A70-85 HRA
ISH-BHV5AVickers150-250 HV5
ISHBHV5B400-500 HV5
ISH-BHV5C650-750 HV5
ISH-BHV10A400-500 HV10
ISH-BHV10B650-750HV10
ISH-BHV30400-500HV30


Additional Information:

  • Item Code: Leeb
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Hardness Test Block 40-50 HRC ISH-BHRC1

REQUEST CALLBACK

Hardness Test Block 40-50 HRC ISH-BHRC1
Get Best Quote

✓Thanks for Contacting Us.

Approx. Rs 2,018 / PieceGet Latest Price

Product Brochure
Product Details:
Minimum Order Quantity1 Piece
BrandINSIZE

Specifications:
ISH-BHRC2:-
HARDNESS TEST BLOCK, hardness value:40-50HRC
CodeTypeHardness
ISH-BHRC1Rockwell C25-35 HRC
ISH-BHRC240-50 HRC
ISH-BHRC355-65 HRC
ISH-BHRBRockwell B75-95 HRB
ISH-BHRARockwell A70-85 HRA
ISH-BHV5AVickers150-250 HV5
ISHBHV5B400-500 HV5
ISH-BHV5C650-750 HV5
ISH-BHV10A400-500 HV10
ISH-BHV10B650-750HV10
ISH-BHV30400-500HV30


Additional Information:

  • Item Code: Rockwell
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabnad
  • Delivery Time: ex stock or with in 7days
Yes! I am interested

Vickers Hardness Measuring System

REQUEST CALLBACK

Approx. Rs 58,297 / PieceGet Latest Price

Product Brochure

Product Details:

Minimum Order Quantity1 Piece
BrandINSIZE

Other Details:

Computer is not needed. Use mouse to measure on monitor

Set measuring times (maximum 9) to have average value and the difference of max. and min. value

Convert to HRA, HRB, HRC, HB, HR45T, HR45N, HR30T, HR30N,HR15T, HR15N

Memory of 9 last results for browsing

Result can be printed automatically (wireless printer is optional)

2 calibration modes: length calibration and hardness block calibration

Tolerance measurement with alarm

Image freeze function eliminates error due to vibration


Specifications:
Senser1/2" CMOSPixel2 resolution 800×600)Hardness measurement resolution0.1HVLength measurement resolution0.1µmLength measurement accuracy±0.5% (diagonal length of indentationTest force0.01, 0.025, 0.05, 0.1, 0.2, 0.3, 0.5, 1
2, 2.5, 3, 5, 10, 20, 30, 50, 100, 120 kgfObjective1X, 2X, 4X, 10X, 20X, 40XDimension120×68×55 mmWeight500g



Additional Information:

  • Item Code: ISH-HVC
  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad
  • Delivery Time: ex stock or with in 7days

Yes! I am interested

Looking for Hardness Tester ?

X
Our Products





Explore More Products

Contact Us

Contact via E-mail
Contact via SMS
Jalpa Mehta (C.E.O)
 Bearing & Tool Centre
1st Floor,, Vyapar Bhavan, Relief Road, Odhav
Ahmedabad - 380001, Gujarat, India
Call Us:
Call Response Rate: 91%
Share Us :
FTL


Company Video


Home  |   About Us   |  Our Products  |  Site Map  |   Contact Us

© Bearing & Tool Centre. All Rights Reserved (Terms of Use)
Developed and Managed by IndiaMART InterMESH Limited

Bearing & Tool Centre
